Build a base station using Septentrio Mosaic X5 receiver

Bill of materials

Here is the list of components required to set up a triple-frequency GNSS base using the Septentrio Mosaic X5:

Hardware	Price (excl. tax)

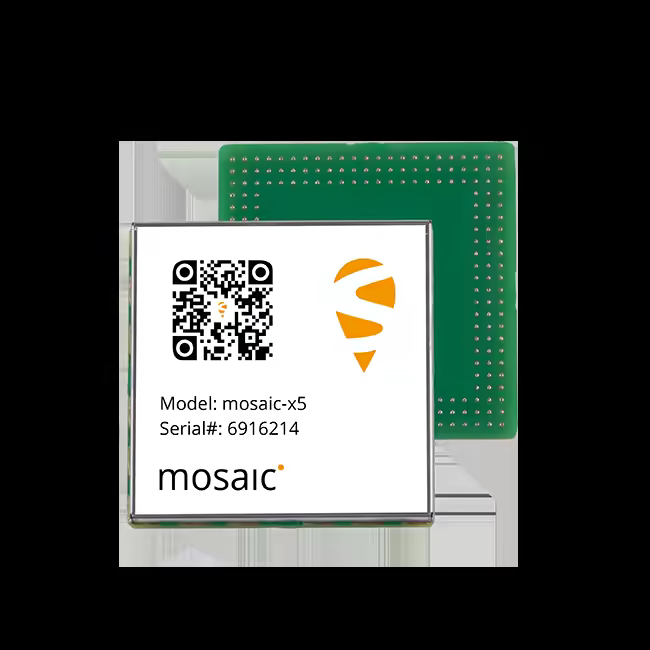

simpleRTK3B Pro or Linnet Mosaic-X5	~€550
Budget Survey Tripleband GNSS Antenna or BT-800S	~€100

First, perform an initial setup without the enclosure:

Mount the antenna on its support
Connect the antenna cable to the GNSS receiver
Connect the USB cable between the GNSS receiver and the Raspberry Pi / Orange Pi
Connect the RJ45 Ethernet cable to your network (internet router, powerline adapter, RJ45 wall socket)
Prepare the power supply but do not power it on yet.
